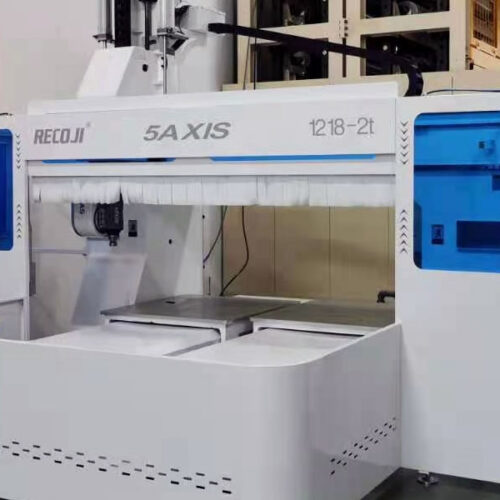

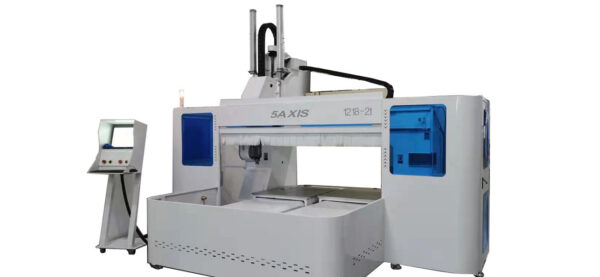

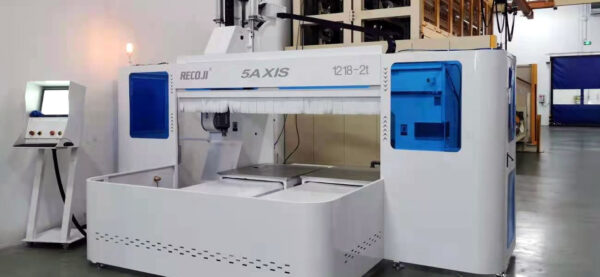

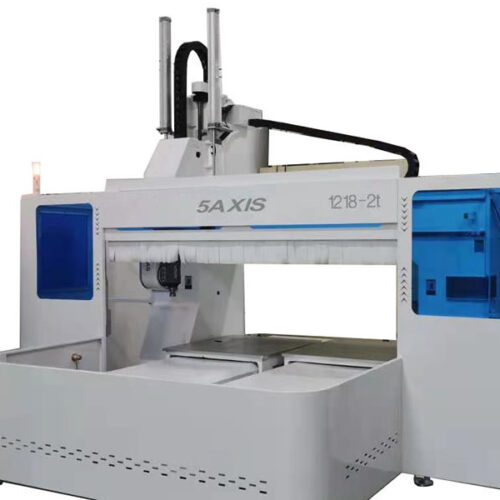

High efficiency Mini double table 5 axis CNCrouter center ST-1218

Features extreme ±110°A/±245°C rotation for complex aerospace molds, medical tools, and automotive dies. Achieves micron-level (±0.01/1000mm) precision via laser calibration and premium components: Italy Demas head, Yaskawa motors, and 24k RPM HSD spindle. Robust 12-20mm heat-treated steel frame ensures zero deformation during heavy-load (5-20T) machining. High-speed (40m/min) processing of composites (carbon fiber), metals, and wood. Moveable table enhances large-part versatility.

Description

Suntec 5 axis details

1. suntec 5 axis XYZAC 5 axis XYZ 3 axis move A +_110 C axis +_245 degree rotary

which can mill trim cut carve engrave surface of working material such as composite materials sucha fiberglass carbon Eps foam styrofoam , plastic aluminum hard wood etc . suntec 5 axis can apply liquid rocket engine nozzle a space shuttle nose cone aircraft brake disc wood mold ,

car plane boat yacht mold parts cast dieing non-metal making mold etc .

2. suntec 5 axis all used Top-brand parts HSD spindle hitec spindle italy Demas 5 axis head ,hsd spindle TPA osai or syntec controller . japan yaskawa absolutely driver and motor helica 3M gear to make sure high precision 0.1mm can be use longlife and low cost low time to maintainance .

3. Suntec 5 axis all use heavy-thick steel welded some parts 12mm thick some even 20 mm welded gantry lengs all heattreatment to delete itself rigidity to make sure longlife use no deformed ,all strucutre by 5 cnc center to mill one legs square guide need 3-5 days by 5 sides cnc center to mill low speed high torque to make sure high precision.

4. Suntec 5 axis working table cast iron table one table from 5-20t according your working material to decide which also can make sure high precision .

5. Suntec 5 axis cnc install use laser to adjust XYZAX callbrate alignment to make sure high

precision .

Number	Description	Parameter
1	X,Y,Z Working Area	120018001000mm
2	Table Size	3300×3700mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/1000mm
4	A axis	A ±110 degree
5	C rotary	C± 245 degree
5	Table Surface	moveable table
6	Frame	Big Steel Tube Structure with heat treatment
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and TBI Ball Screw
9	Max. Power Consumption	(Without Spindle) 12 Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	12kw
13	Spindle Speed	0-24000RPM
14	Drive Motors	Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec Control System/TPA /osai
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	HSK-F63
21	X,Y Resolution	<0.01mm
22	Software Compatibility	powermill UG software
23	Running Environment Temperature	0 – 45 Centigrade
24	Relative Humidity	30% – 75%
25	Packing Size	5500X2100X2300mm
26	N.W.	6000KG
27	G.W.	8000kG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		Delta/ Panasonic Servo Motors
		Colombo Spindle
		Schmalz PTP table
