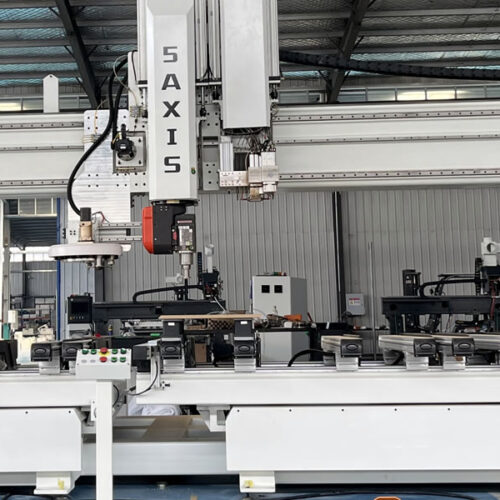

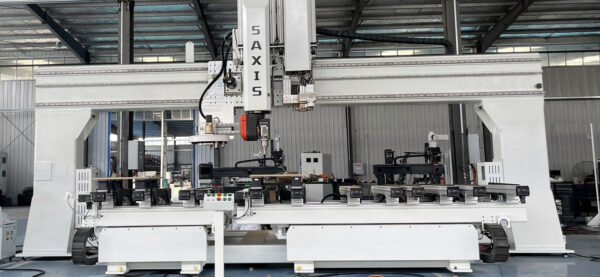

Customized double table PTP 5 axis cnc router ST-3015

Dominates large-format furniture, aerospace composites, and polymer molding with an industry-leading 3000x15000x1000mm work zone (optional 1500x1500x1000mm). Features extreme A±120°/C±240° rotation and micrometer-accurate (±0.01/1000mm) machining powered by premium components: HSD 15kW spindle (24k RPM), Italy HSD 9v3h1s boring head, Yaskawa servos & Schmalz vacuum technology. Heavy heat-treated steel frame ensures stability during high-speed (40m/min) grooving and chamfering operations.

Description

Can be applied to MDF furniture , solid wood furniture, PVC/PP/PE, ABS, rubber, polyurethane, glass fiber, carbon fiber and other composite materials for grooving, chamfering, punching, hook grooves and other processes and multiple angles of high precision and high efficiency processing.

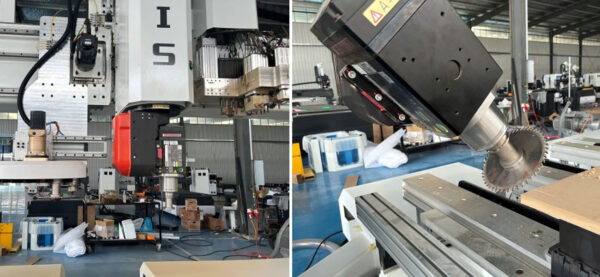

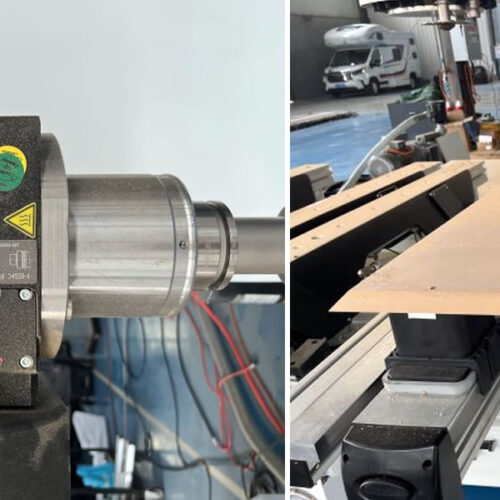

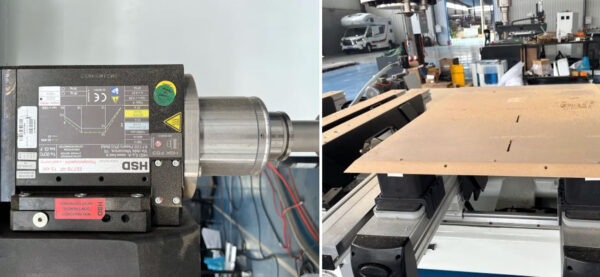

Itlay HSD 15KW air cooling spindle HSK63F Collector

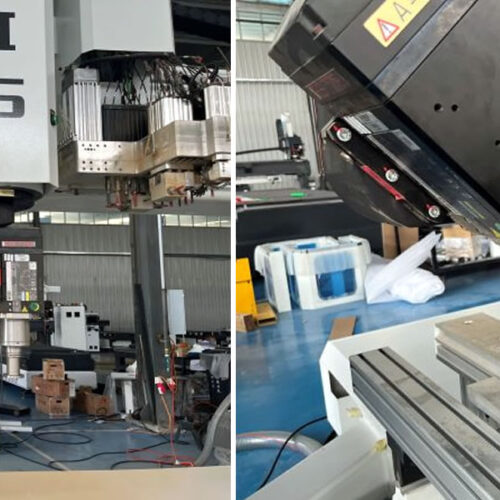

Itlay HSD boring head

Japan Yaskawa servo motor and driver

12-position rotary tool magazine

Germany Schmalz vacuum table

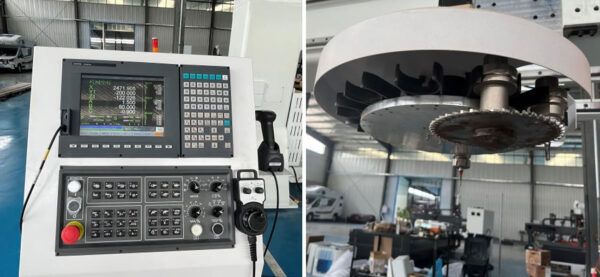

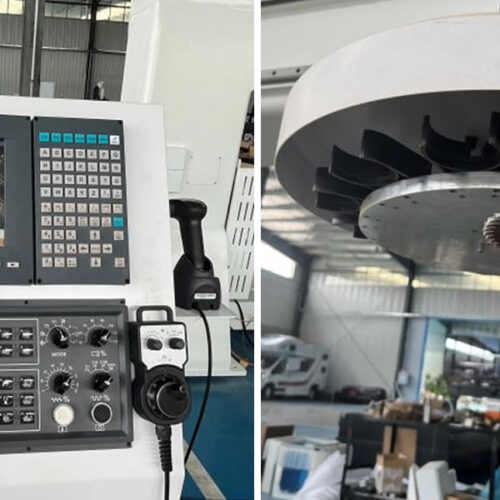

Taiwan syntec controller

Vacuum pump 7.5kw 250m3/h

It works with all industry standard CAD/CAM software

umber	Description	Parameter
1	X,Y,Z Working Area	3000150001000mm 150015001000
2	Table Size	3000×1500mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/1000mm
4	A C ROTARY	A 120 degree C 240 degree
5	Table Surface	PTP table with vacuum cups shmalz
6	Frame	Big Steel Tube Structure with heat treatment
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 16 Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	HSD 15kw spindle
13	Boring head	HSD 9v3h1s
14	Spindle Speed	0-24000RPM
15	Drive Motors	Yaskawa Motors
16	Working Voltage	AC380V/50/60Hz,3PH
17	Command Language	G Code
18	Operating System	osai
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	HSK-F63
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 powermill UG software
23	Running Environment Temperature	0 – 45 Centigrade
24	Relative Humidity	30% – 75%
25	Packing Size	5500X2100X2300mm
26	N.W.	16000KG
27	G.W.	18000kG
