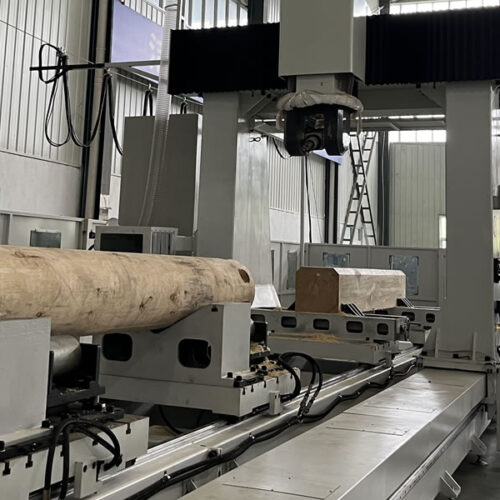

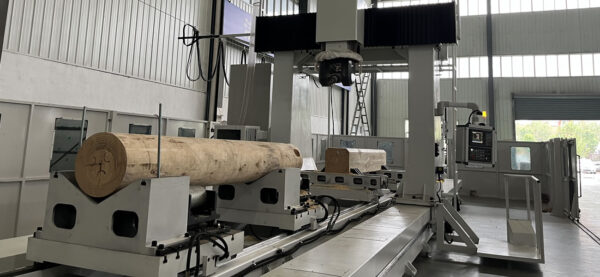

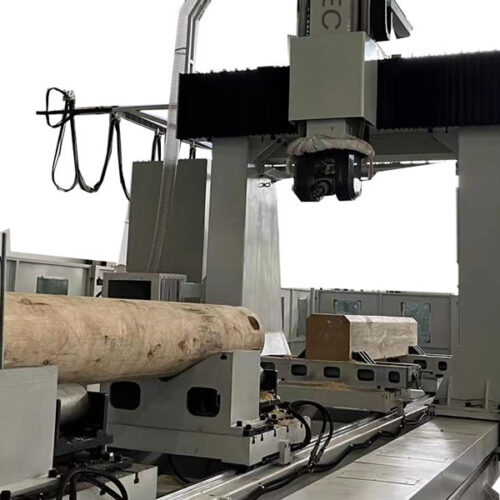

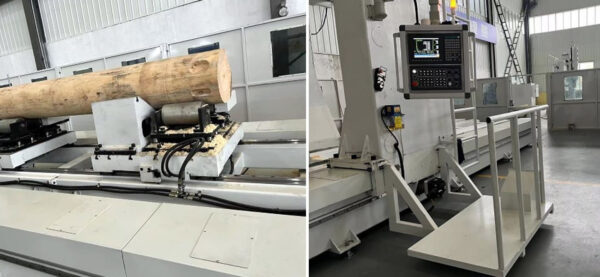

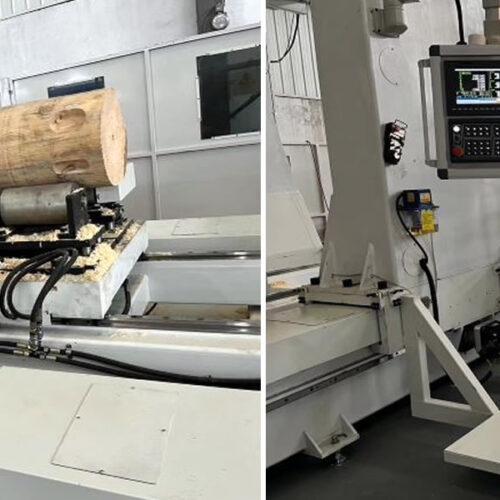

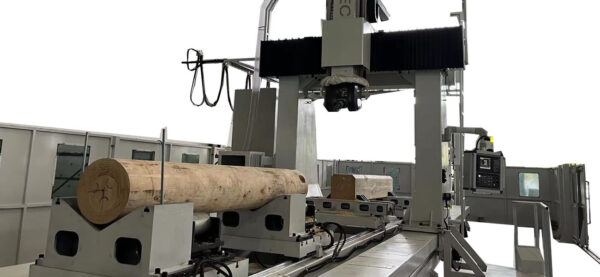

Customized 5 axis CNC Machining Centres for timber construction

Engineered for ancient wood houses & timber framing with massive 18m X-axis capacity and heavy 48-ton construction. Cast iron table supports oversized beams while achieving ±0.01mm precision via laser-calibrated Yaskawa servo system (1300W XY/1800W Z) and 24k RPM spindle (10/12/14kW options). High-speed (40m/min) complex joinery cutting at extreme A120°/C245° angles. Industry-proven Syntec/OSAI controls with UG/PowerMill compatibility for traditional woodworking techniques

Description

Can be applied for ancient wood house , timber construction

Description	Parameter
X,Y,Z Working Area	1600180001000mm
Table Size	3850×27000mm*3500mm
X,Y,Z Traveling Positioning Accuracy	±0.01/1000mm
AC	120 and 245 degree rotary
Table Surface	Cast iron table
Frame	Big Steel Tube Structure with heat treatment
X, Y Structure	Rack and Pinion Drive, Taiwan Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearings and Ball Screw
Max. Power Consumption	(Without Spindle) 15 Kw
Max. Rapid Travel Rate	40000mm/min
Max. Working Speed	30000mm/min
Spindle Power	10/12/14
Spindle Speed	0-24000RPM
Drive Motors	XY 1300W Yaskawa Motors Z AXIS1800W
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
Command Language	G Code

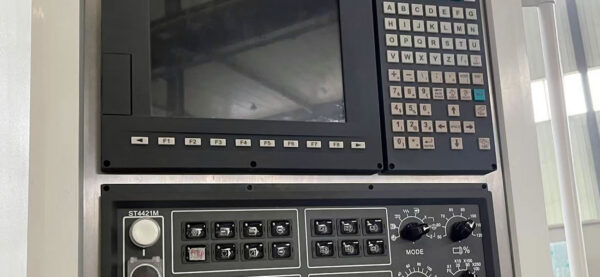

Operating System	Syntec Control System/TPA /OSAI
Computer Interface	USB
Flash Memory	512M
Collet	HSKF63 ER40
X,Y Resolution	<0.01mm
Software Compatibility	powermill UG software
Running Environment Temperature	0 – 45 Centigrade
Relative Humidity	30% – 75%
Packing Size	5500X2100X2300mm
N.W.	46000KG
G.W.	48000KG
