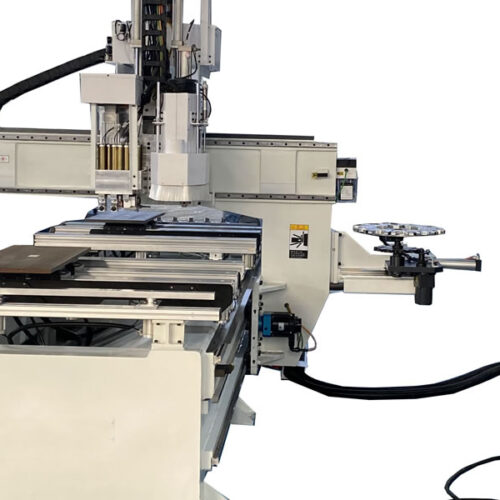

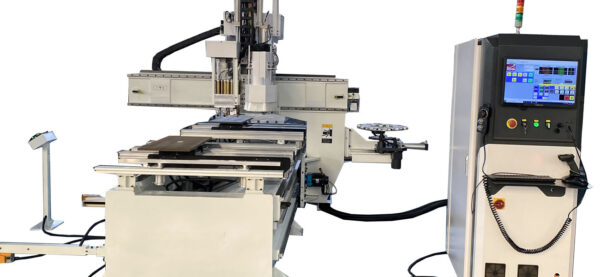

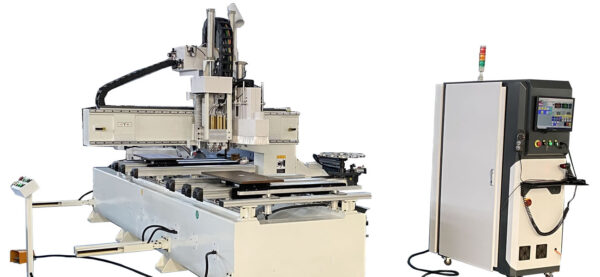

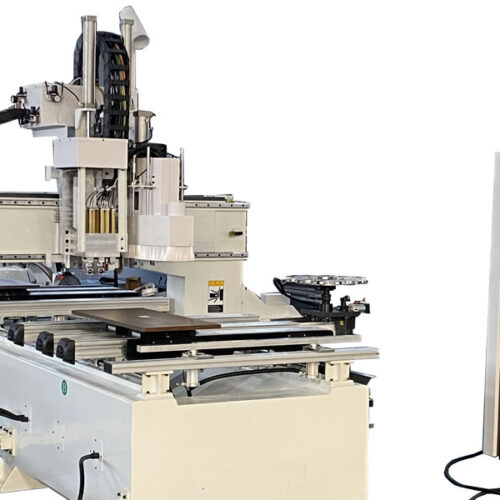

PTP woodworking drlling machine center ST-1330

Suntec PTP CNC: Industrial Furniture Production Powerhouse​
Features 4-zone pendulum workflow for continuous panel processing at 80m/min speeds. Precision boring/drilling (±0.025mm) via HSD spindles (24k RPM) and Italian TPA controllers. Furniture-optimized vacuum table with movable suction cups handles full-sized sheets. Heavy CNC-milled/heat-treated frame ensures stability.

Category:
Share your love
Please enable JavaScript in your browser to complete this form.

Description

heavy duty drilling PTP CNC machine.

1 The machine body is made by cnc milling center and heat -treatment, which can guarantee the stability and working life of the machine.

2 There are Four working zones, can do pendulum working way. The working speed is fast and accurate, humanized design makes it is convenient for workers to load / unload the parts. Control interface is humanized, modular programming, foot Pedal to be used to control loading / unloading.

3  it  is suitable for processing customized furniture (cabinet, closet), panel furniture and batch pipelining production.

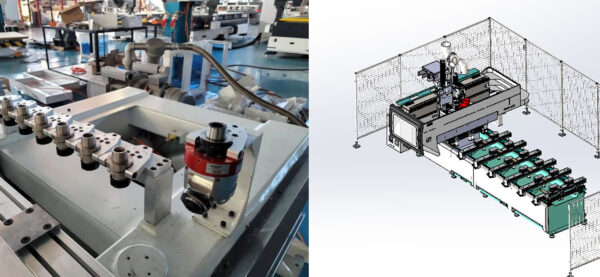

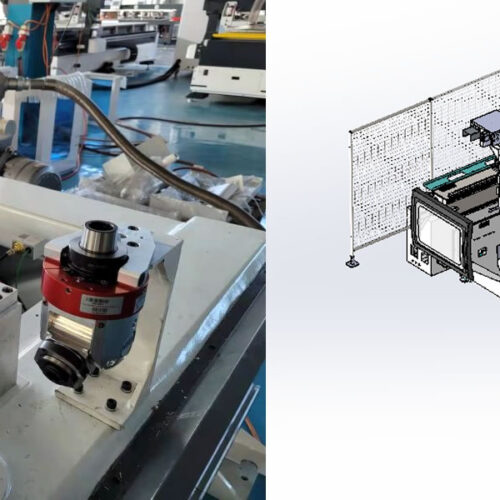

PTP CNC furniture woodworking boring drilling router center is designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions.  Vacuum table fitted with suction cups. Cropping the full sheet to your ideal size, routing, drilling, sawing, cutting, and milling—multiple functions, all in one. Easy for loading and unloading, spend less time but get more out of it.

ModelST-1545      ST-1330
Travelling size4750*2500*300mm3400*1640*250mm
Max Working size4500*1500*300mm3000*1300*100mm
Working zone4 or 2 working zone/Pendulum working way
TransmissionX/Y rack and pinion drive, Z ball screw drive
Table structureAluminum bars x10pcs with movable Vacuum pads
Spindle power12 KW/Air Cooling/HSK-F6312 KW/Air Cooling/HSK-F63
Driving system1300W Servo Motor/Yaskawa  1300W Servo Motor /Yaskawa
ControllerItalian TPA controller (Mechatrolink II)/osaiItalian TPA controller/osai
Max Spindle speed24000r/min24000r/min
Max Travelling speed80m/min80m/min
Working speed20m/min20m/min
Reposition Accuracy+/- 0.025mm+/- 0.025mm

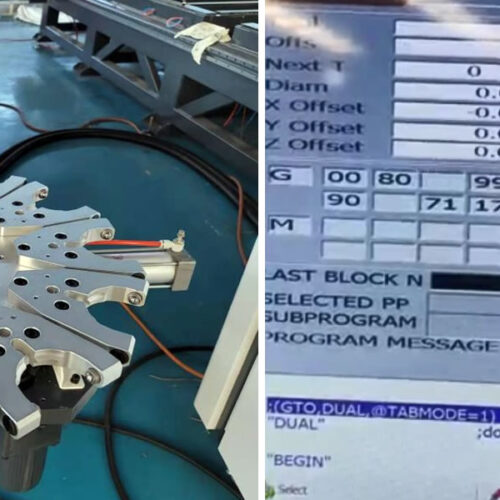

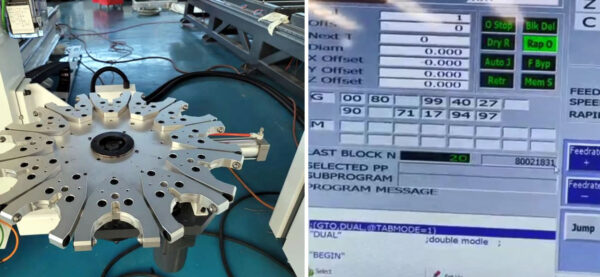

Tool magazineCarousel/Servo/ 12Carousel/Servo/ 8
VoltageAC380/3PH/50HZAC380/3PH/50HZ

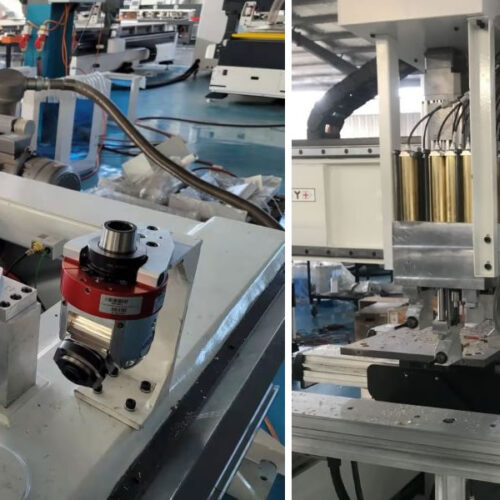

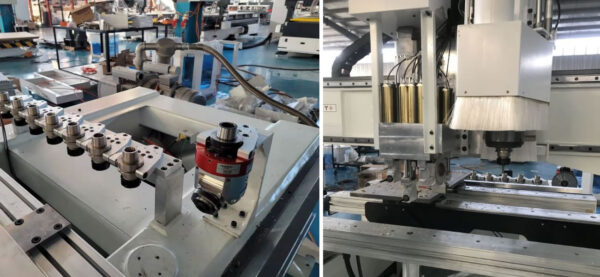

Boring head16V8H2S/HSD/Italy9V6H1S/HSD/Italy
Optional boring Unit9V6H1S/ 7V4H/ 12V8H2S10V4H2S/ 7V4H/ 12V8H2S
Net weight5600KGS  4000KGS
