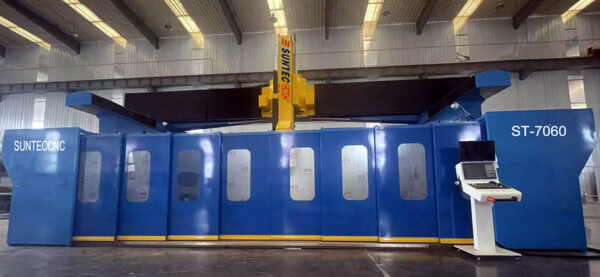

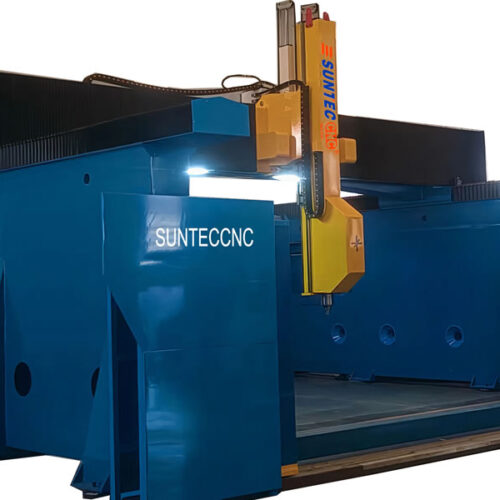

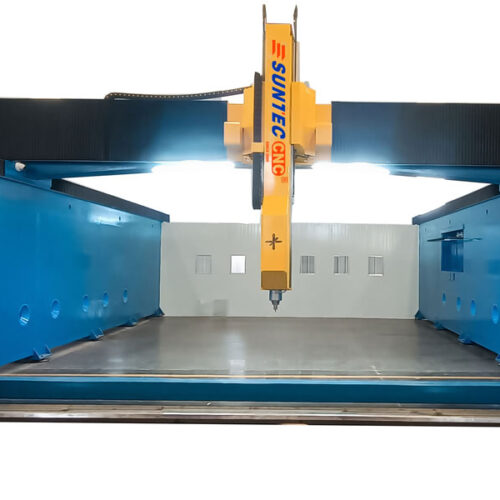

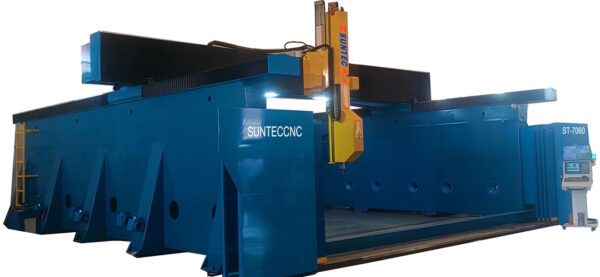

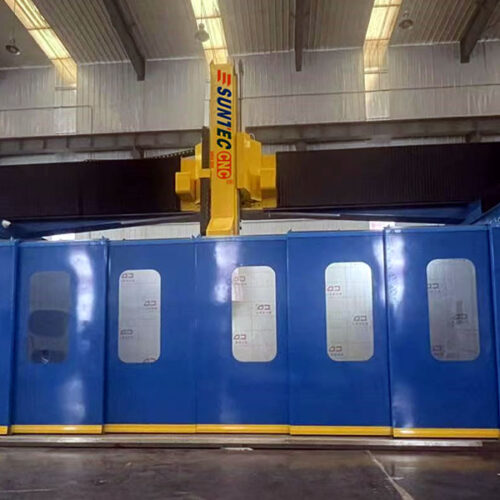

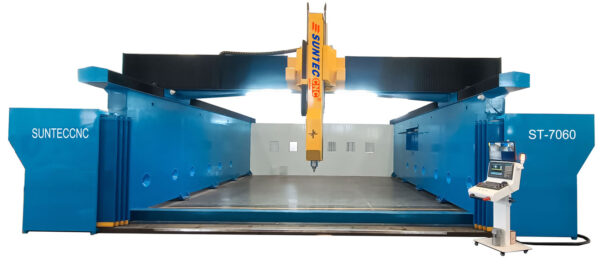

Large 5-Axis CNC stone aluminum marble Milling Machines For Heavy Industry ST-7060

Suntec 5-Axis CNC: Industrial-Scale Precision for Critical Manufacturing
Engineered for mega-scale aerospace, defense & energy components (6000×7000×2000mm capacity). Achieves ±0.01mm precision in carbon fiber, aluminum, and industrial composites. Features extreme ±110°A/±245°C rotation, 15kW spindle (24k RPM), and Yaskawa servos. Heavy-duty heat-treated steel frame supports 20-ton loads on cast iron table. Processes complex geometries at 40m/min for turbines, submarine parts, and medical implants.

Share your love
Please enable JavaScript in your browser to complete this form.

Description

5-axis CNC machining can be used to produce parts utilized in plenty of different industries due to their efficiency and the ability to produce complex shapes. Here are a few examples of industries that most commonly take advantage of this technology:

 Aerospace – this industry requires a very precise machine, as the shapes are very intricate and unique.

Medical – 5-axis CNC machining can help manufacturers of medical equipment in the production of devices, implants, as well as other pieces of equipment that need to be made with extra precision in order to meet healthcare standards which tend to be rigorous (rightfully so).

Military – another industry that uses 5-axis CNC machining to produce the needed parts. Some of the possible applications include submarine parts, high-performance engine parts, turbine and compressor blades, smart weapons, sensors, stealth applications, as well as, in some cases, nuclear weaponry.

Energy equipment – producing parts for energy equipment often requires using materials that are hard to work with. With 5-axis CNC machining, you can make the whole process easier and more efficient.

Applied for styrofoam , eps foam, fiberglass,carbon material honeycomb yougi wood ,composite material  aluminum soft material etc non-metal materials.

Suntec 5 axis details

NumberDescriptionParameter
1X,Y,Z Working Area6000*7000*2000mm
2Table Size7300×9700mm*40000
3X,Y,Z Traveling Positioning Accuracy±0.01/2000mm
4A axisA ±110 degree
5C rotaryC± 245 degree
5Table SurfaceCast iron table
6FrameBig Steel Tube Structure with heat treatment
7X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
8Z StructureHiwin Rail Linear Bearings and TBI  Ball Screw
9Max. Power Consumption(Without Spindle)  20 Kw
10Max. Rapid Travel Rate40000mm/min
11Max. Working Speed30000mm/min
12Spindle Power15kw
13Spindle Speed0-24000RPM
14Drive MotorsYaskawa Motors
15Working VoltageAC380V/50/60Hz,3PH (Option: 220V))
16Command LanguageG Code
17Operating SystemSyntec Control System/TPA /osai
18Computer InterfaceUSB
19Flash Memory512M
20ColletHSK-F63
21X,Y Resolution<0.01mm
22Software Compatibility powermill UG software
23Running Environment  Temperature0 – 45 Centigrade
24Relative Humidity30% – 75%
25Packing Size5500X2100X2300mm
26N.W.18000KG
27G.W.20000kG
