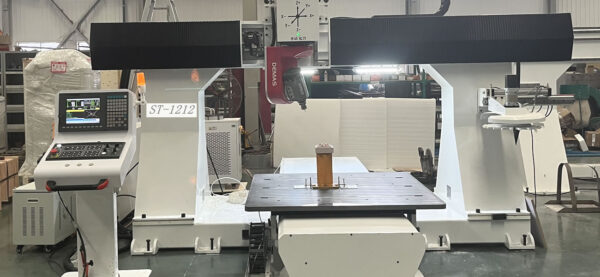

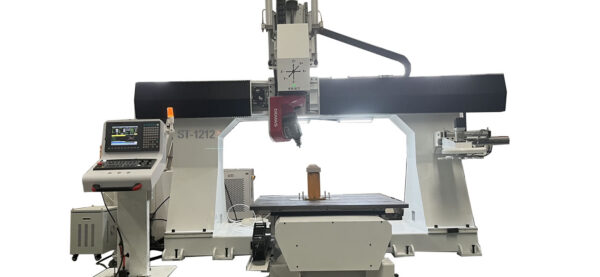

china mini 5 Axis CNC Machining Center price ST-1212

Engineered for aerospace, medical, military, and energy sectors. Features extreme ±110°A/±245°C rotation and laser-calibrated ±0.01mm positioning accuracy. Robust 12-20mm heat-treated steel frame ensures zero deformation under heavy loads (5-20T cast iron table). Top-tier components: Yaskawa motors, Italian Demas head, and 24k RPM HSD spindle enable high-speed machining (40m/min). Processes composites (carbon fiber), metals, wood for complex applications: rocket nozzles, medical implants, and turbine blades.

Description

5-axis CNC machining can be used to produce parts utilized in plenty of different industries due to their efficiency and the ability to produce complex shapes. Here are a few examples of industries that most commonly take advantage of this technology:

Aerospace – this industry requires a very precise machine, as the shapes are very intricate and unique.

Medical – 5-axis CNC machining can help manufacturers of medical equipment in the production of devices, implants, as well as other pieces of equipment that need to be made with extra precision in order to meet healthcare standards which tend to be rigorous (rightfully so).

Military – another industry that uses 5-axis CNC machining to produce the needed parts. Some of the possible applications include submarine parts, high-performance engine parts, turbine and compressor blades, smart weapons, sensors, stealth applications, as well as, in some cases, nuclear weaponry.

Energy equipment – producing parts for energy equipment often requires using materials that are hard to work with. With 5-axis CNC machining, you can make the whole process easier and more efficient.

Suntec 5 axis details

suntec 5 axis XYZAC 5 axis XYZ 3 axis move A +_110 C axis +_245 degree rotary

which can mill trim cut carve engrave surface of working material such as composite materials sucha fiberglass carbon Eps foam styrofoam , plastic aluminum hard wood etc . suntec 5 axis can apply liquid rocket engine nozzle a space shuttle nose cone aircraft brake disc wood mold ,

car plane boat yacht mold parts cast dieing non-metal making mold etc .

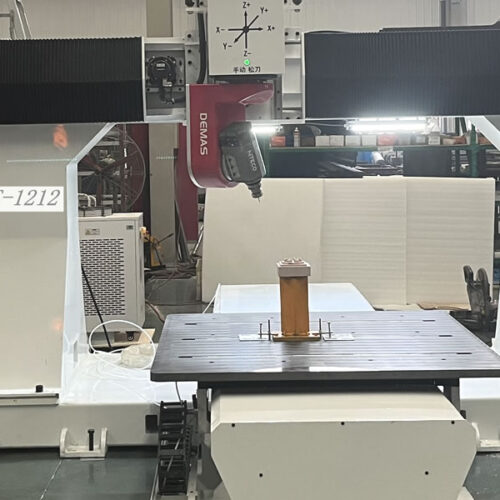

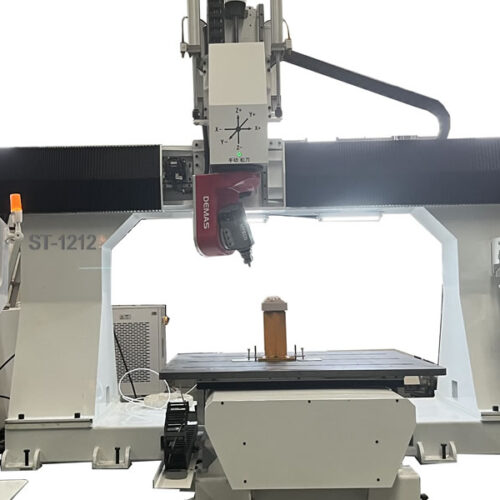

suntec 5 axis all used Top-brand parts HSD spindle hitec spindle italy Demas 5 axis head ,hsd spindle TPA osai or syntec controller . japan yaskawa absolutely driver and motor helica 3M gear to make sure high precision 0.1mm can be use longlife and low cost low time to maintainance .
Suntec 5 axis all use heavy-thick steel welded some parts 12mm thick some even 20 mm welded gantry lengs all heattreatment to delete itself rigidity to make sure longlife use no deformed ,all strucutre by 5 cnc center to mill one legs square guide need 3-5 days by 5 sides cnc center to mill low speed high torque to make sure high precision.
Suntec 5 axis working table cast iron table one table from 5-20t according your working material to decide which also can make sure high precision .
Suntec 5 axis cnc install use laser to adjust XYZAX callbrate alignment to make sure high

precision .

Number	Description	Parameter
1	X,Y,Z Working Area	12001200700mm
2	Table Size	3300×3700mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/700mm
4	A axis	A ±110 degree
5	C rotary	C± 245 degree
5	Table Surface	Movable table with vacuum table
6	Frame	Big Steel Tube Structure with heat treatment
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and TBI Ball Screw
9	Max. Power Consumption	(Without Spindle) 12 Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	12kw
13	Spindle Speed	0-24000RPM
14	Drive Motors	Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec Control System/TPA /osai
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	HSK-F63
21	X,Y Resolution	<0.01mm
22	Software Compatibility	powermill UG software
23	Running Environment Temperature	0 – 45 Centigrade
24	Relative Humidity	30% – 75%
25	Packing Size	4500X2100X2300mm
26	N.W.	6000KG
27	G.W.	8000kG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		Delta/ Panasonic Servo Motors
		Colombo Spindle
		Schmalz PTP table
