Description

The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which we can design with powermill mastercam Software etc

2. We use top quality components for the machines, likeHSD spindle, Syntec EZ-4M control system, Delta Inverter, Yaskawa servo motors, and separate control box, Hiwin PMI linear and so on, to keep the machine in best condition even after many years working.

Yaskawa servo can make high resolution high torque high precision lower fault .

With hard steel structure, all steel structure welding then heattreatment to reduce itself rigidity to make sure longlife uselife no deformed .then use 5 sides milling center to mill square guide railway to make sure high precsion so it is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration. cast molding making , carbon material mold making , fiberglass mold making , plastic mold making , EPS mold making , 3d foam making , non-metal 3d model making . Aviation mold , millitary mold making aluminum styrofoam mold making ship boats etc .

1)Bigger size like 1500*3000mm, 2000*3000mm, etc.
2) Rotary Device for processing column materials.
3) Dust collector 4) Mist spray cooling system

Number	Description	Parameter
1	X,Y,Z Working Area	3000x4000x1000mm
2	Table Size	4000×6440mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/1000mm
4	X,Y,Z Repositioning Accuracy:	±0.01mm
5	Table Surface	T-slot Combined (Option: T-slot Table)
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 4 Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	9.6kw HSD
13	Spindle Speed	0-24000RPM
14	Drive Motors	1300W Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec Control System
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	ISO30
21	X,Y Resolution	<0.01mm
22	Software Compatibility	powermill UG software
23	Running Environment Temperature	0 – 45 Centigrade
24	Relative Humidity	30% – 75%
25	Packing Size	6800X2100X2300mm
26	N.W.	10000KG
27	G.W.	12500KG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		Delta/ Panasonic Servo Motors
		Colombo Spindle

PRODUCTION DETAILS

After welding then table flat producing to make sure table at same level to make sure high precision

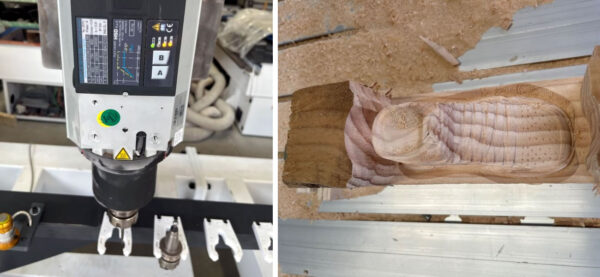

Italy,HSD spindle , the features are high speed and low noise. The spindle is passed test of IP65 water proof and dust proof.Ceramic bearing is thermostable. Max. speed is 24000RPM,heavy duty cutting is available for high precision and bearing abrasion. Inside and outside air cooling system prolong spindle’s life.

syntec controller Fast response, PLC, strong stability, strong controllability, high sensitivity, secondary development is possible, and functions can be added at will

The feedback signal is strong.The control system has high accuracy, diversified operation, and protection mechanism to prevent mechanical collision caused by overtravel operation.

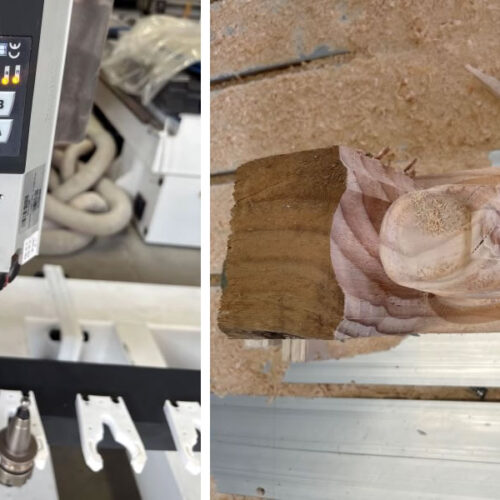

automatic tools change 8 piece for saving time labor colocktime and anticoloc change high working effiency

working sample by customer making using suntec 4 axis cnc ST-2030 mold

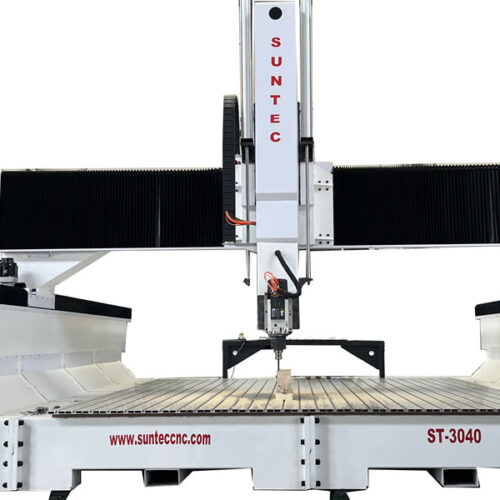

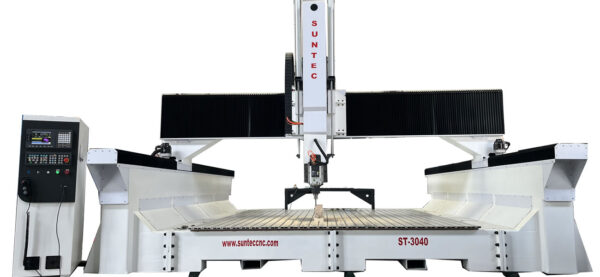

impeller wood mold by suntec ST-1830 swing 180 degree 4 axis cnc router

crawler shoes mold by suntec 4 axis cnc machine center precision 0.1mm

The spindle can rotate 180 degree(±90 degree), can make multikinds of surface

We use top quality components for the machines, like HSD spindle,hitec spindle ISO 30 24000 rpm Syntec /OSAI/tpa controller for optional, Delta Inverter, Yaskawa servo motors, and separate control box, Hiwin PMI liner and so on, to keep the machine in best condition even after many years working.

3.With hardsteel,whichis fit for hard wood working, like cutting and engraving on Roseod

for furniture, indoor decoration. 3d wood mold ,eps foam plastic mold making etc high precision

5 axis side milling center to milling square guide to make sure high precision

Sanding to reduct steelitsel dust to make sure paiting well and no scrab

All structure table heattreatment to deduct steel itself rigidity to make sure longlife use no deformed .

Heavy duty square gantry table milling by cnc center

Steel plate table with T slot to bear heavy duty material to make sure table no deformed

STEEL TABLE FOR OPTIONAL , NORMAL ALUMINUM TABLE WITH PVC , ALL ACCORDING YOUR REQUIRMENTS TO CHOOS E TABLE

9kw HSD spindle 24000 rpm cutter blade and spindle rotary at the same time all the time so it no swing cutter and ATC well . customer working 16 hours everyday using 6 years still well .

Syntec controller high sensitivity strong stability controll ability and fast feedback , importantly it can second development if you want add one fuction just send you file then use directly ,

Automatic tool change 8 piece , cutter accordingyour material to choose , if you make mold first milling need rough milling need 150-200mm straight cutter then fine miling need 50mm cutter to slow miling to make sure precision .
