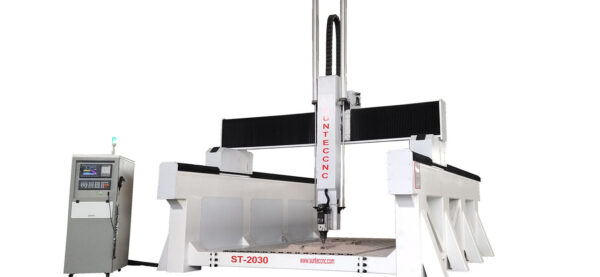

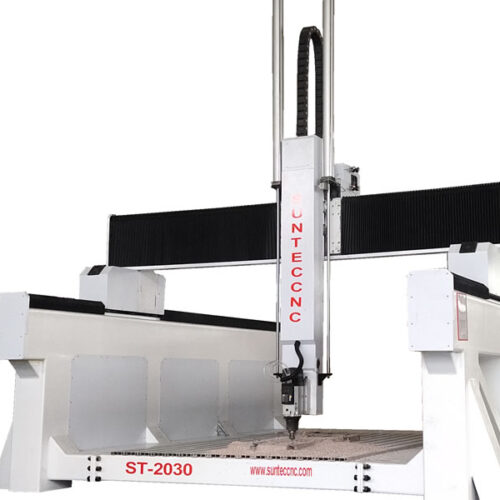

4 Axis 3d mold EPS CNC Router For Foam Wood Aluminium Mold Making ST-2030

180° rotating HSD spindle enables complex machining. Premium components (HSD, Yaskawa, Syntec) ensure long-term precision & reliability. Hardened steel structure guarantees accuracy for demanding applications (hardwoods, molds). High speed (40m/min), ±0.01mm precision.

Description

The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which we can design with powermill mastercam Software etc

We use top quality components for the machines, likeHSD spindle, Syntec EZ-4M control system, Delta Inverter, Yaskawa servo motors, and separate control box, Hiwin PMI linear and so on, to keep the machine in best condition even after many years working.

Yaskawa servo can make high resolution high torque high precision lower fault .

With hard steel structure, all steel structure welding then heattreatment to reduce itself rigidity to make sure longlife uselife no deformed .then use 5 sides milling center to mill square guide railway to make sure high precsion so it is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration. cast molding making , carbon material mold making , fiberglass mold making , plastic mold making , EPS mold making , 3d foam making , non-metal 3d model making . Aviation mold , millitary mold making etc .

Number	Description	Parameter
1	X,Y,Z Working Area	2000x3000x1000mm
2	Table Size	4000×5440mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/1000mm
4	X,Y,Z Repositioning Accuracy:	±0.01mm
5	Table Surface	Aluminum table with PVC
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 20 Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	9.6kw HSD with 180 degree rotary right and left
13	Spindle Speed	0-24000RPM
14	Drive Motors	1300W Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec Control System
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	ISO30
21	X,Y Resolution	<0.01mm
22	Software Compatibility	powermill UG software
23	Running Environment Temperature	0 – 45 Centigrade
24	Relative Humidity	30% – 75%
25	Packing Size	6800X2100X2300mm
26	N.W.	7000KG
27	G.W.	8000KG
